    ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ5257GJBM3841W
    Certification : ISO/3C/BV/IFA/SGS
    Price : USD47500-USD48000/UNIT)negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2,000units per month
    Delivery Time : 25 working days after received your advance payment
    • Product Details
    • Company Profile

    ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment

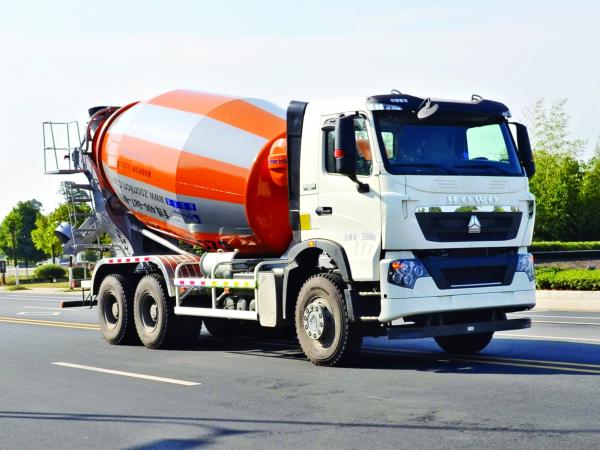

    SINOTRUK HOWO Mobile Concrete Mixer Truck RHD 6X4 10CBM 290HP Engine


    Description:


    SINOTRUK HOWO Mobile Concrete Mixer Truck RHD 6X4 10CBM 290HP Engine

    Our mixer truck using import hydraulic system, such as America Pump and motor, Italy brand reducer.

    easy to repair and maintainance.


    The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with HW76 single berth cabin

    or HW70 cab, exclusively for export is equipped with European 2 or Electronic common

    rail, Euro III and Euro IV SINOTRUK independent research and development of engine, standard

    German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16

    rear axle, carrying capacity great to meet the needs of customers.


    The mixing tank body is made of high strength wear-resistant steel plate, cage type mold

    are integrally formed to ensure that the flange, sections of the cylinder body and

    rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.

    The tank body adopts the double helix blade, moderate density and taper before the

    gateball symmetric stirring plate and tank mouth at the installation of blades and a

    material guide vanes, resorted to materials to be more even faster.


    Specification:


    Concrete Mixer Truck SINOTRUK HOWO 10CBM ZZ5257GJBM3841W Italy hydraulic system

    ModelZZ5257GJBM3847W
    Drive Type6×4
    Engine

    WD615.87 , 290HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    CabinHW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    TransmissionHW19710(10 forwards & 2 reverses)
    Front Axle1×HF9 ( 9 Tons)
    Driving AxleHC16, 16Tons
    SteeringZF8098 hydraulic steering with power assistance.
    ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base3825+1350(mm)
    Overall dimension8604×2496×3950(mm)
    Tank body Capacity

    10CBM

    The curb weight12800(Kg)
    Gross weight25000 kg
    Max. speed102km/h
    ColorWhite, red, green, golden and so on.


    Applications:


    t’s suitable for agitating and transport concrete, for construction site, road repairing and some other

    infrastructure construction business.


    Competitive Advantage:


    1)competive price, cost-effective
    2)quick and efficient spare parts supply bring you more convenient
    3)fast delivery time, we can arange production according to your needs exactly and

    quickly

    4) professional import and export dealing precedure, make customs clearance more high efficiency

    5)The leading product technology, complete function, excellent performance, reliable quality, easy to

    operate.

    6)Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

    discharge uniformity, low rate of residual.

    7)Imported hydraulic pump, hydraulic motor and speed reducer.

    8)Uses the high strength steel plate, long service life.

    9)Optimization of the whole structure, low center of gravity, high running efficiency.

    10)Product range is wide, the tank capacity of 6 to 18 cubic meters.

    11)Choose a variety of auxiliary device.

    12)Match all concrete mixer truck chassis.

    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable
